Types of Centrifugal Pumps for Fire Protection Systems: Horizontal vs. Vertical Shaft Designs Explained
A beginner-friendly guide with diagrams, quick comparisons, and NFPA fact-checks — no math required.
TL;DR
Centrifugal pumps are the default for fire protection. Use horizontal shaft (split-case, end suction, in-line) when your source provides positive suction headThe water surface or pressure is at/above pump centerline, so gravity pushes water into the pump.. Use vertical shaft (vertical turbine) when you must lift water from below pump level (wells, pits, lakes). Both are tested to deliver 150% flow at ≥ 65% rated head per NFPA 20.
Hey there, budding fire protection pros! 👋 If you’re fresh out of engineering school or just curious about how buildings stay safe from flames, welcome to the pump party. Last time, in our Introduction to Stationary Fire Pumps, we chatted about why these bad boys are lifesavers. Now, let’s zoom in on the stars of the show: centrifugal pumps. These are the most common type used in fire systems, and they come in horizontal and vertical shaft flavors. We’ll keep it simple—no fancy math—sprinkle in emojis, and translate jargon as we go.
What are centrifugal pumps? Think of the spinning-bucket trick 🪣—water flings outward. Inside a pump, an impellerThe fan-like wheel that spins water from center to rim, converting rotational energy to water pressure. spins fast (commonly 1,800–3,600 RPM), throwing water into a volute (spiral casing) and out to your sprinklers, standpipes, and hydrants.
The Ground-Level Workhorse
Common types: Split-case (easy maintenance), End-suction (compact), In-line (space-saver).
- Best fit: Positive suction head from city mains, elevated tanks, or pressurized reservoirs.
- Pros: Great for high flow; easy alignment & service; familiar installations.
- Watch-outs: Not for static suction lift from below pump level.

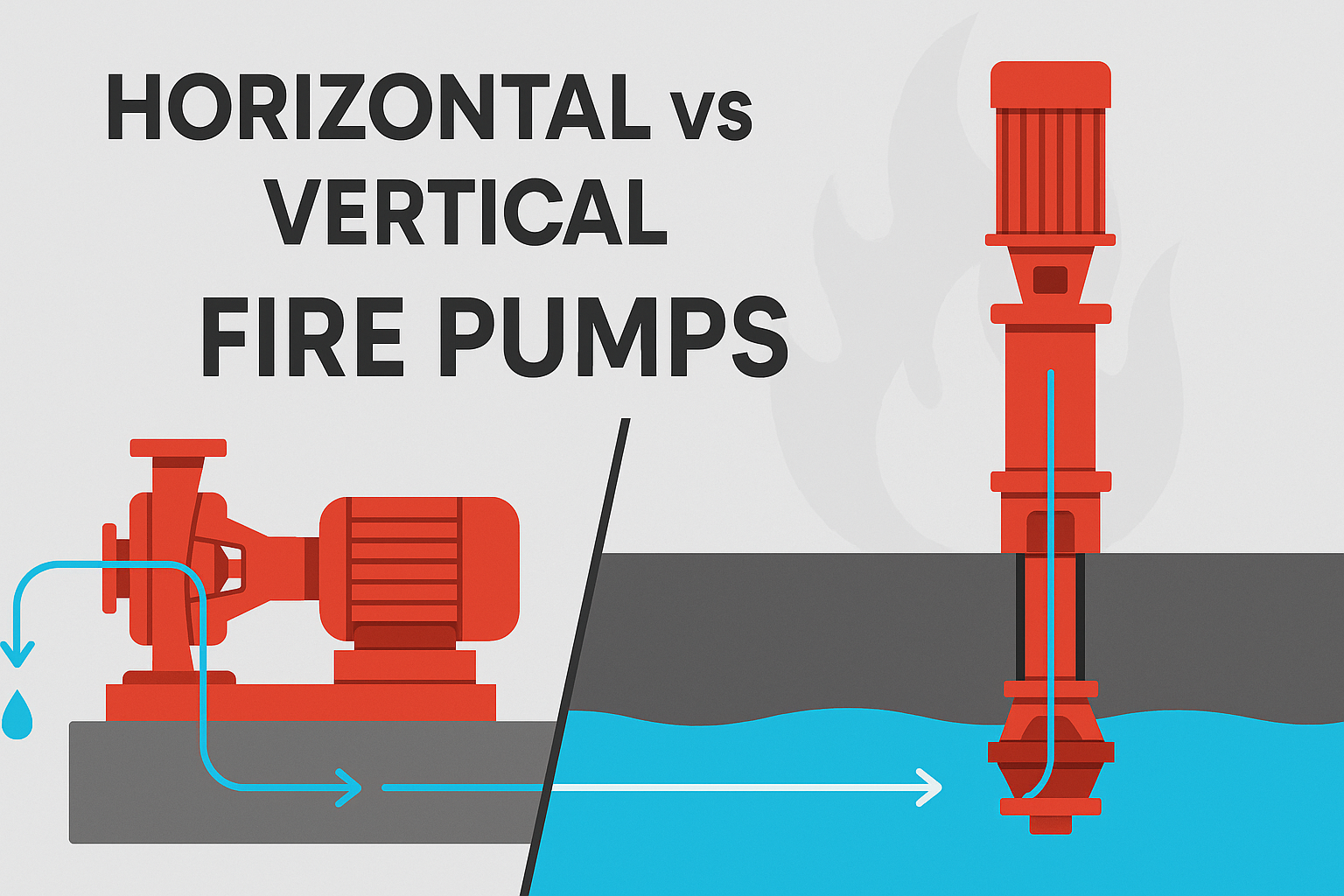

Horizontal vs. Vertical — Quick Comparison
| Feature | Horizontal Shaft | Vertical Shaft (Turbine) |
|---|---|---|
| Suction scenario | Positive suction head | Static suction lift allowed |
| Typical types | Split-case, End-suction, In-line | Vertical turbine (single or multistage) |
| Installation | On a flat foundation; easy access | Needs well/sump or barrel casing |
| Maintenance | Split-case opens for impeller access | Submerged bowl/shaft inspection plan |
| Where they shine | Urban sites with reliable mains; warehouses | Remote sites, wells, raw-water intakes, high-rise pressures |
NFPA-style fact checks (plain English)
- Performance curve: At 150% of rated flow, the pump must produce at least 65% of rated head; churn pressure is also limited for safety.
- Suction lift: Horizontal/end-suction/in-line are for flooded/positive suction. If you must lift from below pump level, use a vertical turbine.
- Listing/approval: Use listed/approved pumps and controllers; follow manufacturer curves and NFPA 20 installation chapters for each type.
Jargon buster
VoluteThe spiral-shaped casing that converts water velocity into pressure. • Rated headThe pressure (converted to meters/feet) the pump is designed to produce at its rated flow. • ChurnThe shut-off point: pump running with discharge closed, producing maximum pressure and zero flow.
