How ACs cool and furnaces heat: the unsung heroes inside HVAC
No magic — just smart energy swaps between streams. Explore the visuals, try real‑world presets, and get hands‑on with Q = U·A·ΔTlm.
🎞️ See it: hot meets cold, heat crosses over
Preset values are illustrative for learning — not a substitute for manufacturer data.
🧮 Quick capacity check — Q = U·A·ΔTlm
📘 Read the step‑by‑step explanation (original content)
So… how do air conditioners cool your room? Or how does a furnace warm your home so effortlessly?
Surprise! It’s not magic. It’s heat exchangers at work behind the scenes. And once you get to know them, you’ll realize they’re the heart and soul of every HVAC system. 💖
Let’s break it all down, step by step, in a way that makes you go, “Ah! That makes total sense.”
🤔 What Exactly is a Heat Exchanger?
Let’s start simple.
A heat exchanger is a device that allows heat (thermal energy) to move from one fluid to another — without the fluids actually mixing.
These fluids could be:
- 💧 Water
- 🌬️ Air
- ❄️ Refrigerant
- 🔥 Steam
Imagine This…
You have hot water running inside a pipe, and you blow cold air over the pipe. Guess what? The cold air gets warm. That’s a heat exchanger in action! ✨
The two never touch, but heat moves across the pipe’s surface from hot to cold. Neat, right?
This principle of “separated but sharing energy” is the key to comfort in buildings, homes, and even your car!
🔧 Why Are Heat Exchangers Used in HVAC?
You’ll find heat exchangers literally everywhere in HVAC systems. Here’s why:
| 🌟 Function | 💡 What It Does |
|---|---|
| ❄️ Cooling | Transfers heat from indoor air to refrigerant or water |
| 🔥 Heating | Transfers heat from flame/hot water to air |
| ♻️ Recovery | Recovers waste heat from exhaust air and pre‑warms fresh air |
| 🌊 Humidifying | Transfers heat in coils to change moisture content |
Without them, your AC wouldn’t cool, your heater wouldn’t heat, and your energy bills would be through the roof 💸.
🧪 Types of Heat Exchangers in HVAC Systems
Let’s look at four major types of heat exchangers that HVAC pros use all the time — and where they show up.
1. 🐚 Shell and Tube Heat Exchangers
Where? Used in chillers, boilers, and big HVAC plants.
How it works:
- One fluid flows inside metal tubes.
- Another fluid flows in a big shell around those tubes.
- Heat jumps from one to the other through the tube walls.
Why it’s great: Handles high pressure 🔥 · Durable and efficient for large buildings · Easy to service
Downside? It’s bulky — not something you’d install in your attic!

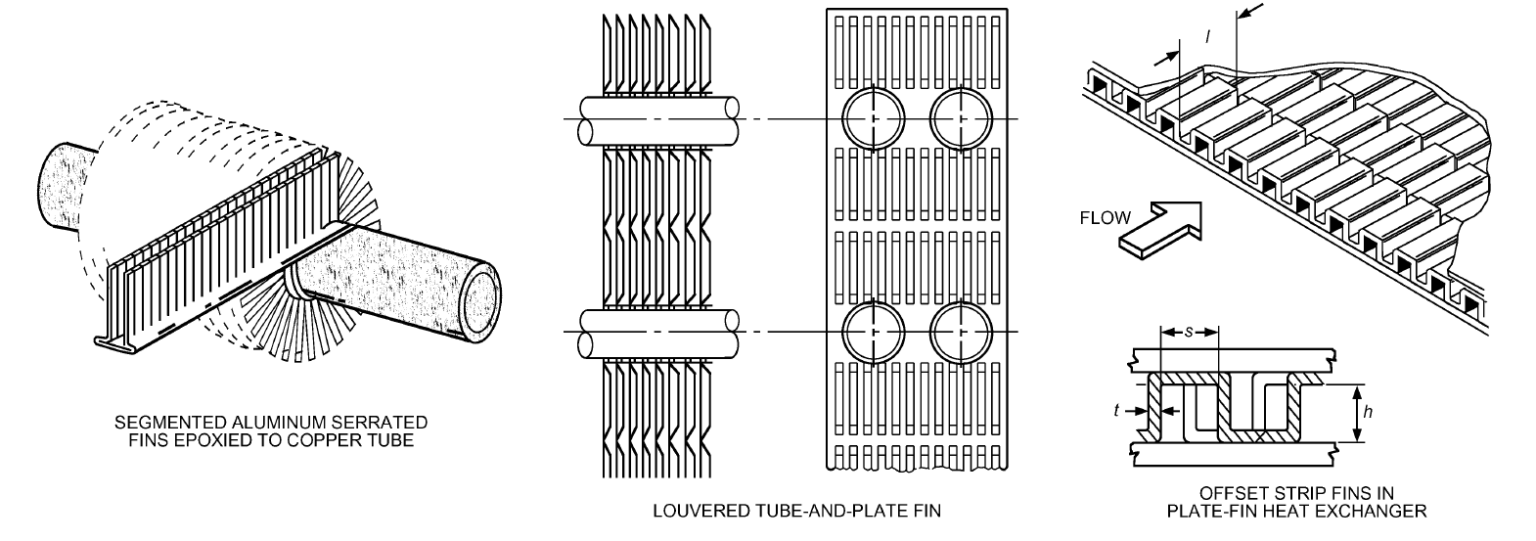

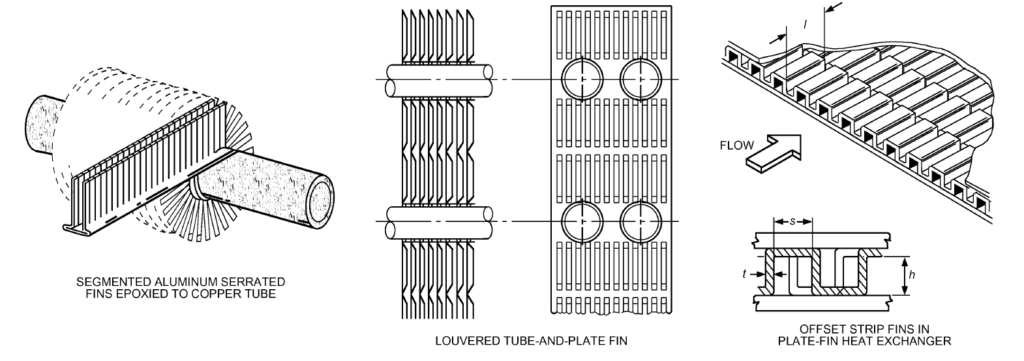

2. 📏 Finned‑Tube Heat Exchangers
Where? Used in fan coil units, air handlers, and air conditioners.
How it works:
- Fluid (like chilled water or refrigerant) runs inside tubes.
- Thin metal fins surround the tubes to increase surface area.
- Air flows over the fins and picks up (or loses) heat.
Why we love it: Fins = more surface area = more heat transfer! Think of it like putting spikes on a radiator to make it more effective 🔥❄️
3. 📚 Plate Heat Exchangers
Where? Used in compact spaces like hydronic systems, boiler connections, or heat recovery units.
How it works:
- Fluid flows between stacked metal plates with very narrow paths.
- Hot on one side, cold on the other — boom! Energy transfers.
Why it rocks: Super compact 📦 · Very efficient · Easy to clean (in gasketed models)
Perfect for: Commercial buildings, radiant floor heating, energy‑saving retrofits.
4. 🌬️ Air‑to‑Air Heat Exchangers (HRV/ERV)
Where? Used in ventilation systems, especially for energy recovery.
How it works: Warm exhaust air leaving the building shares heat with cold fresh air coming in. This pre‑warms incoming air in winter, and pre‑cools it in summer.
Why it’s amazing: It saves energy without running any extra heater or cooler! Perfect for green buildings 🌱
🧭 Choose the right heat exchanger
Shell‑&‑Tube
High pressure, plant rooms, chillers/boilers. Rugged and serviceable.
Finned‑Tube
Air coils in AHUs/FCUs. Fins boost area when air side limits U.
Plate (gasketed/brazed)
Compact hydronics, heat recovery bridges, DHW interface.
Air‑to‑Air (HRV/ERV)
Ventilation energy recovery; sensible or enthalpy cores.
DX Coils
Refrigerant‑to‑air evaporators/condensers; finned‑tube geometry.
Hydronic Coils
Chilled/hot water to air; wide range of U per air side.
Want the physics refresher? See convective heat transfer, thermal‑resistance circuits, or psychrometrics 101.
🧠 Myth or Fact (3 quick ones)
q = U · A · ΔTm — simple formula, powerful design lever
Tweak U, area, or the temperature program and watch capacity change in real‑time. Includes LMTD for parallel vs counterflow.
📘 Read the friendly explanation (your original text)
So… how do air conditioners cool your room? Or how does a furnace warm your home so effortlessly?
Surprise! It’s not magic. It’s heat exchangers at work behind the scenes. And once you get to know them, you’ll realize they’re the heart and soul of every HVAC system. 💖
Let’s break it all down, step by step, in a way that makes you go, “Ah! That makes total sense.”
In heat exchangers, the rate of heat transfer is usually given by: q = U·A·ΔTm
| Symbol | Meaning |
|---|---|
| q | Heat transfer rate (Watts) |
| U | Overall heat transfer coefficient (W/m²·K) — how readily heat moves across surfaces & films |
| A | Heat‑transfer area (m²) |
| ΔTm | Mean temperature difference (we use the log mean for changing temps) |
🧮 Bonus: What’s ΔTm? Because fluid temperatures change as they flow, we use the log mean temperature difference (LMTD) for accuracy.
Citation: Standard LMTD expression (counterflow form). Image hosted on wisdomwaveshub.in.
🔧 LMTD + Capacity Calculator
Assumes constant properties; for cross‑flow, use counterflow as a conservative proxy.
📊 Results
🔍 What affects efficiency?
📏 Surface Area (A)
Bigger area → more heat transfer. Use fins where air side limits U.
🧲 Material Conductivity
Copper/Aluminum conduct heat faster than steel/plastic.
💨 Air/Fluid Speed
Higher velocity ↑ turbulence & h, but also ↑ pressure drop.
🧼 Cleanliness
Dirt adds Rf; try the fouling box above to see how U falls.
🔁 Flow Arrangement
Counterflow maximizes ΔT at both ends → largest LMTD.
🛠️ Pro Design Tips for HVAC Heat Exchangers
- ✔️ Use fins where you need air‑side heat exchange
- ✔️ Size for capacity, not just flow rate
- ✔️ Keep them clean — fouling kills performance
- ✔️ Use high‑conductivity materials (copper, aluminum)
- ✔️ Add energy recovery when exhausting indoor air
Deepen your fundamentals: convective heat transfer, thermal‑resistance circuits, psychrometrics 101, emissivity & absorptivity.
Hospitals: comfort + efficiency with two different heat exchangers
A hospital HVAC system uses a plate heat exchanger to recover heat from stale exhaust air and preheat the fresh air coming in — saving thousands in energy bills every year 💰. Meanwhile, the basement chiller relies on a shell‑and‑tube exchanger to chill water that circulates through fan‑coil units on every floor. Efficiency meets comfort = win‑win!
Wrap‑Up: Why You Should Care
- ✔️ Lower energy bills
- ✔️ Better indoor air quality
- ✔️ More sustainable buildings
- ✔️ Happy clients 😊
✅ Comparison Table: Types of Heat Exchangers in HVAC
| 🔄 Type | 💼 Common Use | ⚙️ Working Principle | 🌟 Pros | ⚠️ Cons |
|---|---|---|---|---|
| Shell & Tube | Chillers, large systems | One fluid in tubes, another in surrounding shell | Durable, handles pressure well | Bulky, high space requirement |
| Finned‑Tube | Fan coils, AHUs, DX units | Air flows over finned tubes carrying fluid | Increased surface area, efficient | Fins can collect dust; lower water‑side efficiency |
| Plate (Gasketed/Brazed) | Hydronic heating, domestic hot water, HRVs | Thin plates separate fluids | Compact, high efficiency, easy maintenance (gasketed) | Limited pressure capacity (gasketed), fouling if dirty |
| Air‑to‑Air (HRV/ERV) | Ventilation systems | Heat transfer between exhaust and fresh air streams | Energy recovery, improves IAQ | May require filters and defrost cycle |
🔄 Heat Transfer Calculator (q = UAΔT)
🛠️ How to Use the Calculator
- Pick a material or surface from the dropdown — like copper, aluminum, or steel.
- Not sure what to choose? No worries — the dropdown includes average U-values for common HVAC materials.
- Want to be precise? Choose “🔧 Enter Manually” to type your own U-value if you know it.
- Enter the surface area where heat is transferred (e.g., size of the heat exchanger or ductwork).
- Input the temperature difference between the two fluids or surfaces.
- Example: 60°C hot water vs. 20°C cold air = ΔT = 40°C (or 40 K).
- Click the blue “Calculate” button to get the result.
The output will show you how much heat is being transferred — in Watts (W) 💥
