Lumped vs Non-Lumped Thermal Analysis: Explained Simply

🌡️ What Do We Mean by Transient Heat Transfer?

Imagine holding a cup of hot tea 🍵 on a chilly evening. Over time, it cools down, right?

That’s transient heat transfer — when temperature changes with time. Unlike steady-state heat transfer (where things stay at constant temperatures), transient means time is a player in the heat game. We’re interested in how fast and how evenly something heats up or cools down.

This comes into play in a lot of real-world HVAC and thermal design scenarios:

• How fast does a thermostat sensor respond?
• How long will it take for a freshly baked pie to cool in the chiller? 🥧❄️
• Will the heat penetrate deep into a thick slab of concrete?

To answer these, we have two powerful tools: 👉 Lumped system analysis
👉 Non-lumped (distributed) system analysis

But when do we use which? 🤔 Let’s find out.

---

📦 What is Lumped System Analysis?

Let’s start with the easier one.

Lumped system analysis is like saying: “Hey, I don’t care about what’s going on inside this object — I’ll just assume the entire thing is at the same temperature at any moment in time.”

😄 It’s a BIG assumption! But sometimes, it works beautifully.

🔎 When does this assumption work?

It works when the object:

• Is small in size 🧊
• Has high thermal conductivity (so heat spreads quickly inside)
• Is exposed to modest external heat flow

🧠 Real-Life Example:

Say you have a tiny copper bead being heated in a lab. Copper conducts heat so well that every part of the bead heats up almost instantly — you don’t have “hot spots” or “cold cores”.

So yes! You can assume the entire bead has the same temperature as it heats. That’s lumped system analysis ✅

---

🧠 The Biot Number: Your Decision Maker

To know for sure whether lumped analysis is acceptable, we use the Biot number (pronounced “bee-oh”).

It’s a dimensionless number (means it has no units) that tells us:

👉 “Is heat flowing inside the object faster than it’s being lost to the outside?”

Here’s the formula:

Where:

Symbol	Meaning
h	Heat transfer coefficient to surroundings (W/m²·K)
Lc	Characteristic length = Volume/Surface area
k	Thermal conductivity of the material (W/m·K)

---

✅ Golden Rule:

If Bi ≤ 0.1, then the internal heat resistance is negligible — and you can safely use lumped system analysis.

If Bi > 0.1, that’s your signal to shift gears and go with non-lumped.

---

📘 The Lumped System Equation

When it’s okay to lump, the temperature change over time is calculated using this elegant little formula:

Let’s decode this like a friend explaining over chai ☕

Symbol	Meaning
TT	Temperature at time τ\tau
T0	Initial temperature
T∞	Ambient (surrounding) temperature
h	Convective heat transfer coefficient
A	Surface area
V	Volume
ρ	Density
cp	Specific heat
τ	Time (seconds)

So this formula helps you answer:
“How much will my object’s temperature drop (or rise) in a given time?”

Perfect for fast-moving thermal processes and electronics! 💻📱

---

🚫 When NOT to Use Lumped Analysis – Say Hello to Non-Lumped Systems

Now let’s say you’re cooling a large slab of concrete in a chilled space, or putting a big apple 🍎 in cold storage. Heat won’t instantly spread through it — the outside cools down faster than the inside.

That’s when you say: ❌ “Nope, lumping is NOT realistic here.” ✅ “Let’s go non-lumped.”

In non-lumped analysis, you respect the temperature gradient within the body. You treat it like a layered cake 🍰 where each layer may have a different temperature.

---

🔍 How Do You Handle Non-Lumped Analysis?

Now we deal with:

• Real-time temperature at different points inside the object
• More advanced math (partial differential equations)
• ASHRAE charts (like Gurnie-Lurie graphs) to the rescue! 📈

These are covered in Figures 11, 12, and 13 of Chapter 4:

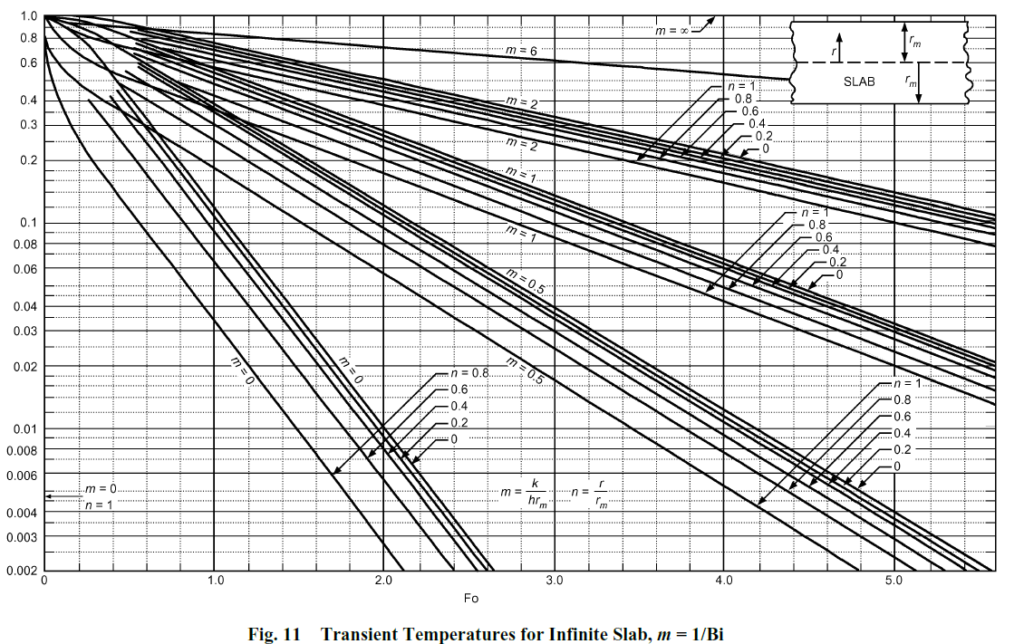

• Figure 11 ➡️ For slabs

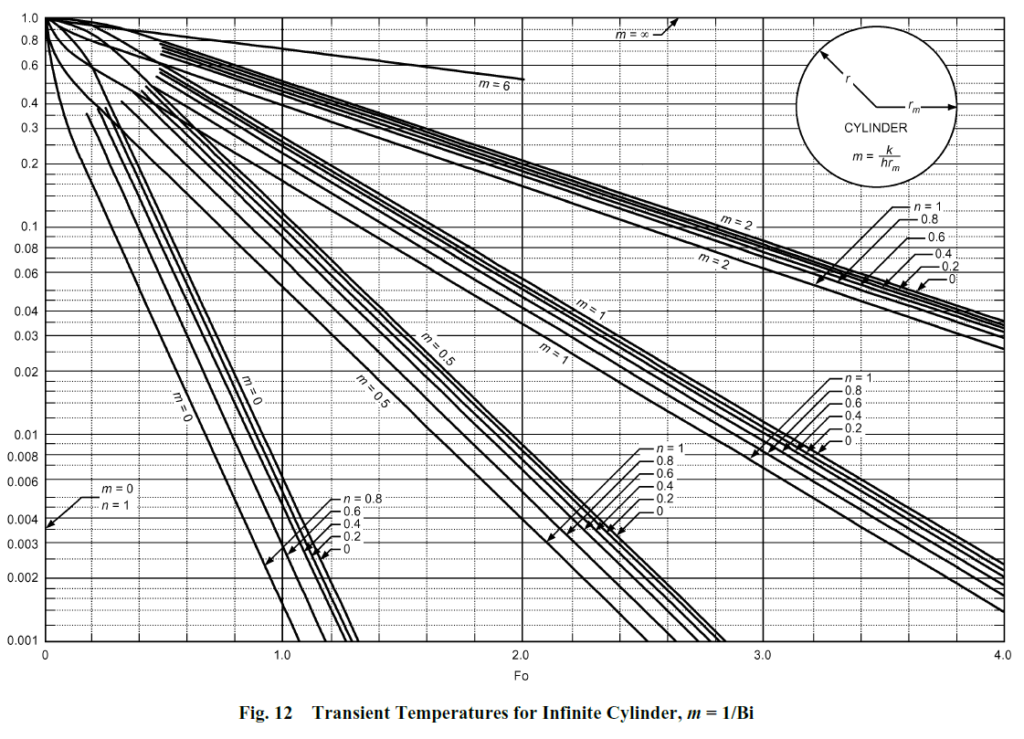

• Figure 12 ➡️ For cylinders

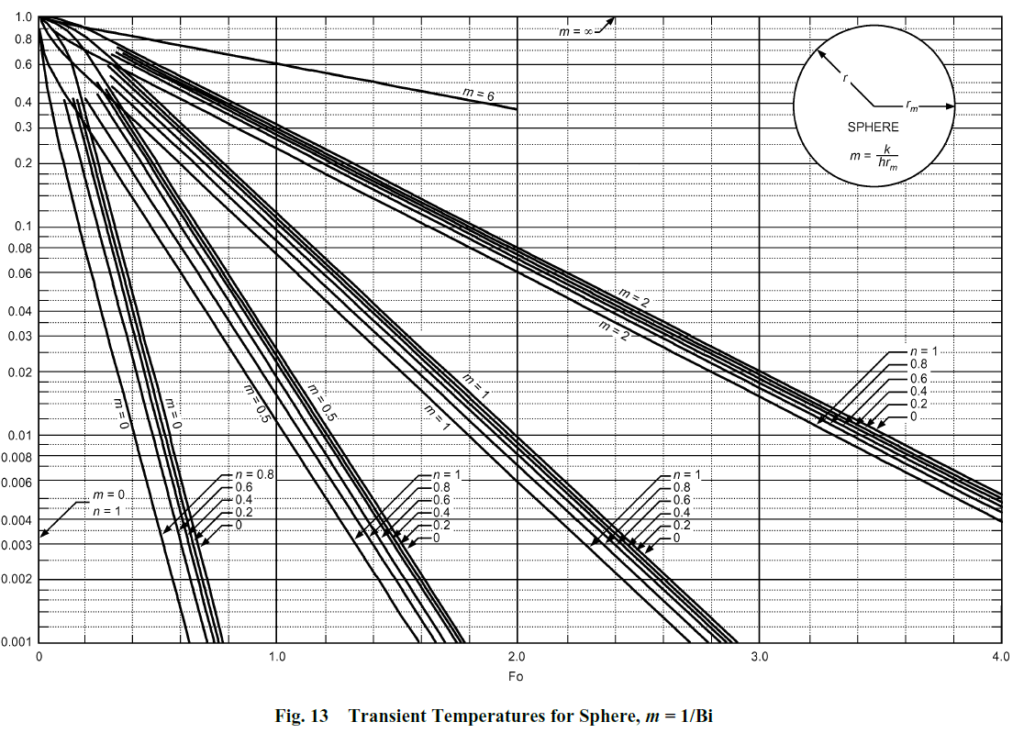

• Figure 13 ➡️ For spheres

---

🍎 Cool Real Example: Cooling an Apple in Cold Storage

Let’s apply all this knowledge.

Scenario:
An apple, 60 mm in diameter, starts at 30°C. You put it in a cold chamber at 0°C. Heat transfer coefficient is h=14 W/m²\cdotpKh = 14 \, \text{W/m²·K}, and the apple’s thermal conductivity k=0.42 W/m\cdotpKk = 0.42 \, \text{W/m·K}

Let’s check the Biot number: Bi=h⋅rk=14⋅0.030.42=1\text{Bi} = \frac{h \cdot r}{k} = \frac{14 \cdot 0.03}{0.42} = 1

😮 Bi = 1 — which is definitely > 0.1
So you must use non-lumped analysis!

Then you use the appropriate ASHRAE chart for spheres to estimate cooling time. Easy-peasy once you get the hang of it 😊

---

🧠 Quick Comparison: Lumped vs. Non-Lumped

Feature	Lumped Analysis	Non-Lumped Analysis
🔢 Biot Number	≤ 0.1	> 0.1
🔍 Internal temperature	Uniform	Varies with position
📐 Complexity	Simple formula	Advanced methods, charts
🧊 Good for	Small metal parts, sensors	Large food items, building walls
📊 Tool Needed	Calculator	ASHRAE Charts, PDE Solvers

---

🛠️ Engineering Wisdom 💡

• Always check the Biot number first – it’s your decision switch!
• Use lumped method when in doubt for quick estimates, but only if the system justifies it.
• For anything thick, slow-conducting, or large, always go with non-lumped and use ASHRAE charts for confidence 🔍

---
