1. What is Nucleate Boiling?

Nucleate boiling is a boiling regime where tiny vapor bubbles first nucleate (i.e., form) at the heated surface and then detach, carrying heat away. Picture small bubbles popping at the bottom of a pot of water—this is essentially nucleate boiling! 🍲

2. Key Jargons Defined

• Saturation Temperature (t_sat): The temperature at which a liquid starts to boil (and bubbles form) under a given pressure.
• Superheat: The temperature difference between the heated surface and the saturation temperature (t_s – t_sat).
• Nucleation Sites: Microscopic pits or cavities on a solid surface where bubbles “choose” to form.
• Latent Heat of Vaporization (h_fg): The amount of heat needed to convert liquid into vapor without changing temperature.
• Burnout (or Departure from Nucleate Boiling, DNB): The point where liquid supply to the surface is disrupted by too much vapor, causing the heat flux to drop suddenly, or the surface to overheat.

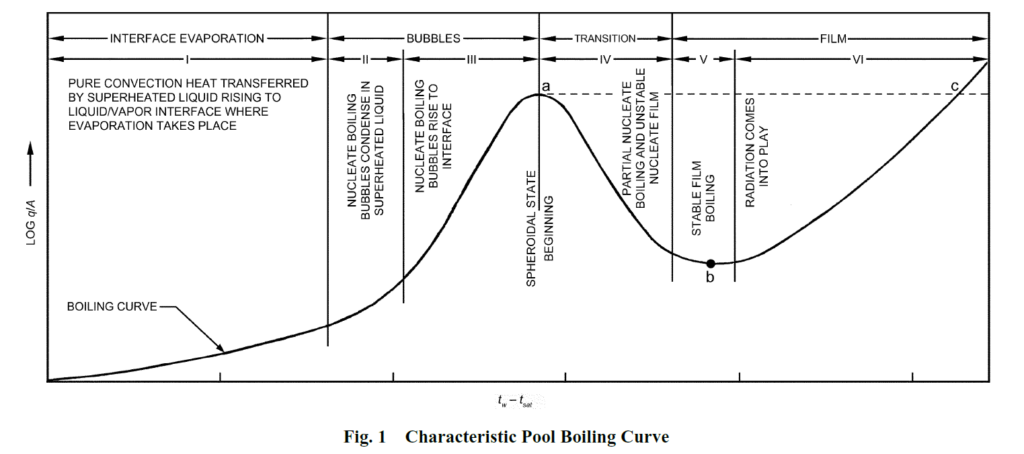

3. Stages of Boiling (Simplified Nukiyama Curve)

When we gradually increase the heat on a liquid:

1. Natural Convection (Pre-Boiling): Initially, the surface temperature is only slightly above tsat. No visible bubbles—just normal convection currents moving heat.
2. Onset of Nucleate Boiling: As the superheat becomes a few degrees, tiny vapor bubbles appear on the heated surface. This marks the beginning of nucleate boiling.
3. Full Nucleate Boiling: Bubbles multiply rapidly and detach more frequently, which greatly increases heat transfer. This continues until we reach a peak heat flux.
4. Transition to Burnout: At a very high heat flux, vapor blankets form over sections of the surface, limiting liquid access. Burnout or DNB is the critical peak beyond which the surface risks overheating.

4. The Nucleate Boiling Heat Transfer Coefficient

A commonly cited empirical (experiment-based) expression for heat transfer coefficient (h) in the nucleate boiling regime is:

• h: Local heat transfer coefficient [{W/(m)_²]
• t_s−t_sat}: Superheat or excess temperature [K]
• a: An exponent around 2.0 for many smooth metal surfaces (depends on fluid & surface).

Interpretation: As the superheat gets bigger, more energy pushes liquid to evaporate, and the number of bubbles at the wall increases—thus h goes up dramatically.

5. One Example: Cooper Correlation

A more detailed formula for nucleate boiling is the Cooper correlation (Equation (T1.6) in Chapter 5). It looks like:

Where:

Don’t worry if it looks complicated! You plug in fluid properties (like molecular weight, critical pressure), and the correlation predicts a realistic nucleate boiling heat transfer coefficient.

Nucleate Boiling Calculator (Cooper Correlation)

Select Fluid: R-134a R-22 Water Ammonia Custom

System Pressure (bar):

Heat Flux q (W/m²):

Molecular Wt (kg/kmol):

Critical Pressure (bar):

Calculate

Note: This simplified calculator uses the Cooper correlation for nucleate boiling heat transfer coefficient (h). Units are SI and results are approximate. Correlation may be valid for certain ranges of pressure and fluids only. Always consult detailed references or experts for critical applications!

6. Why Do Bubbles Matter So Much?

• Bubble Agitation: When bubbles form and break away, they stir the fluid. This turbulence helps break thermal boundary layers at the wall, allowing fresh, cooler liquid to arrive at the surface.
• Carrying Latent Heat: Each bubble lifts away a chunk of heat (the latent heat) when it detaches, further cooling the surface.

7. Approaching the Burnout

As heat flux keeps climbing, more vapor forms around the surface, eventually merging into a vapor “blanket.” This blocking layer of vapor starves the surface of liquid, cutting down heat transfer. This phenomenon is known as Departure from Nucleate Boiling (DNB) or burnout. The surface temperature can then jump dangerously if the heat input is not controlled.

8. Practical Takeaways for Engineers

1. Surface Condition Matters: Rough or porous surfaces can promote earlier onset of nucleate boiling (more nucleation sites) and yield higher heat transfer—until you near burnout.
2. Check Your Pressures: The boiling behavior strongly depends on system pressure (or saturation temperature). Higher pressure can alter the onset of nucleation and overall boiling curves.
3. Avoid Burnout: In real equipment, design margins are kept well below the burnout heat flux—otherwise meltdown risk (especially for metal surfaces) becomes real!
4. Watch for Mixtures: For zeotropic mixtures (like many modern refrigerants), mass transfer resistance can lower the nucleate boiling coefficient vs. a pure fluid.

In a Nutshell

Nucleate boiling is the superstar regime of boiling where tiny bubbles, forming at the heated surface, boost heat transfer by constant agitation and evaporation. But beyond a certain burnout limit, vapor blankets form, and the heat-transfer dance abruptly changes tune to film boiling—not something engineers want if they’re aiming for high performance without meltdown! 🔥

(If you want to see charts or tables from the project files, let me know in brackets and I’ll attach them!)

🎉 Bonus Tip

Explore Enhanced Surfaces: Micro-finned tubes or specially coated surfaces can further intensify nucleate boiling and lower the risk of burnout—very useful for compact heat exchangers!

That wraps up our journey through Nucleate Boiling, from Bubble Birth to Burnout. If you have any questions on superheat, nucleation sites, or how to pick the right correlation for your fluid, just ask away! 😊
