Based on ASHRAE Chapter 4 (2017) guidance, simplified for fast checks.
🎞️ Animated Demo: Condensation on a cold pipe (SVG)
Animation loops ~18–24 s depending on risk; slows in No risk, speeds up in Condensation risk. Respects reduced-motion preferences.
📘 Read the quick guide (your original content)
Condensation might seem like just a few harmless water droplets, but in HVAC systems, it can cause insulation damage, mold growth, and even corrosion of pipes. Not so harmless anymore, huh? 😬
In this guide, we’ll explain what causes condensation, how to prevent it using the principles from ASHRAE Chapter 4 (2017), and give you formulas, real-world examples, and practical design tips 🛠️.
🌫️ What is Condensation?
Condensation happens when warm, moist air comes into contact with a cold surface, like a chilled water pipe. When the surface temperature of the pipe drops below the dew point of the surrounding air, water vapor turns into liquid water.
💧 Dew Point: The temperature at which air becomes fully saturated (100% relative humidity) and water vapor begins to condense.
🔍 Why Is Condensation a Problem?
- 🧽 Waterlogged Insulation: Reduces thermal effectiveness
- 🦠 Mold & Mildew Growth: Creates health hazards
- ⚙️ Corrosion Risk: Especially in metallic components
- 💸 Energy Waste: Wet insulation doesn’t insulate!
🧪 ASHRAE Example: Pipe Insulation and Surface Temperature
ASHRAE gives us a practical example in Chapter 4: a chilled copper pipe carrying 5 °C water is wrapped with insulation. If the surface temperature of the insulation drops below the ambient dew point, condensation occurs on the insulation, not just the pipe! 😲
📏 Step-by-Step: How to Prevent Condensation
- Know Your Dew Point. Use psychrometric data to determine the dew point temperature of the space.
- Calculate Surface Temperature of Insulation. Use ts = ta − q × Rout.
- Use Adequate Insulation Thickness. More R means higher surface temperature (closer to ambient) → less risk.
- Control Ambient Humidity. Dehumidify or ventilate to keep dew point in check.
Recommended Formula Summary
Where q = heat gain (W), ta = ambient (°C), t = fluid (°C), Rtotal = total thermal resistance (K/W).
tsurface = tambient − q × R
- If tsurface < tdew → 🧊 Condensation risk
- If tsurface > tdew → 😎 Safe
🛠️ Pro Tips to Avoid Condensation
- ✅ Use vapor barriers with insulation
- ✅ Seal all insulation joints and penetrations
- ✅ Maintain regular insulation inspections
- ✅ Don’t compress insulation during installation — it lowers R-value!
- ✅ Use closed-cell insulation in humid areas
🧮 Quick Condensation Check
Model assumes 1 m length; radial conduction through insulation + outer convection. It’s a design-screening tool, not a substitute for full handbook methods.
📊 Results
📐 Thickness Helper
Click Auto-size thickness to find the minimum insulation thickness that keeps the surface temperature at least your chosen margin above the dew point.
📚 How the math works (radial insulation + film)
Per metre length (L = 1 m):
- r1 = Do/2
- r2 = r1 + thickness
- Rcond = ln(r2/r1) / (2π k L)
- Rout = 1 / (ho · 2π r2 L)
- RTotal ≈ Rcond + Rout (simplified)
- q = (Ta − Tf) / RTotal
- tsurface = Ta − q · Rout
For rigorous design, include inner film resistance and pipe wall conduction if needed; the simplified model is conservative for chilled water screening.
🧠 Myth vs Fact — Quick Quiz
Answer 3 questions. Get all correct to celebrate with confetti 🎉

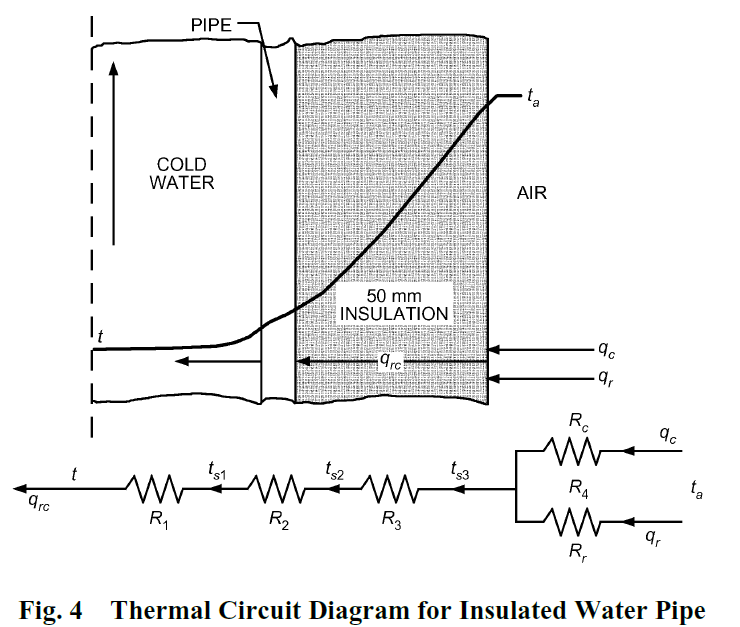

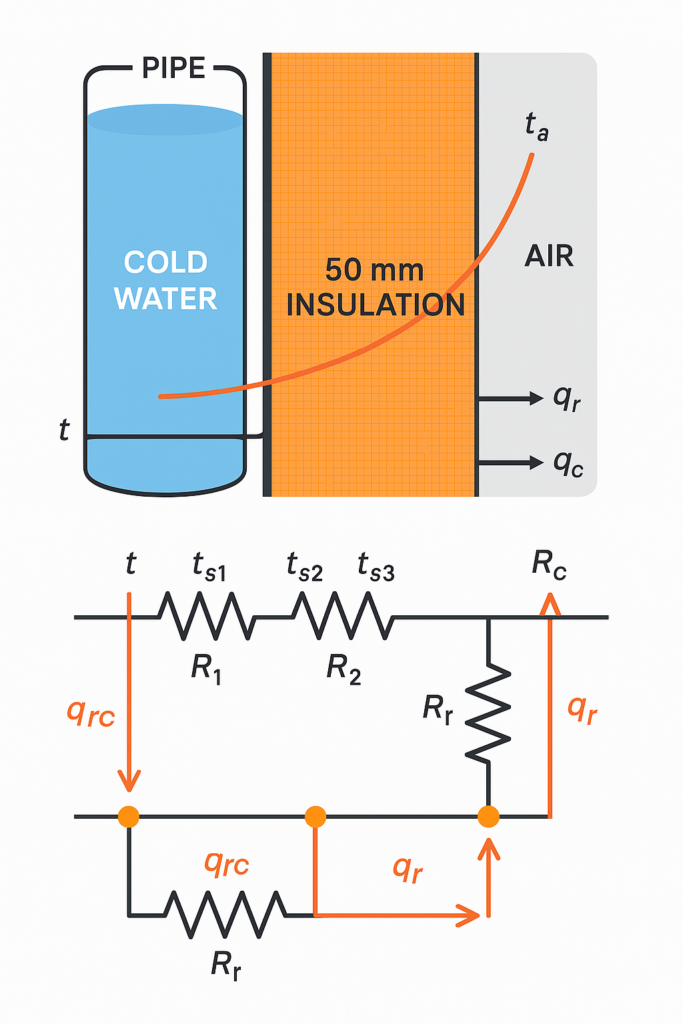

ASHRAE Figure – Thermal Circuit of Insulated Pipe (2017 Fundamentals, Chapter 4
💡 Final Thoughts
Condensation is sneaky, but you’ve got science on your side! With proper understanding of dew point, surface temperature, and insulation performance, you can design HVAC systems that stay dry and efficient 💪.
Are these the steps used in the calculator?
Yes, with one nuance. The calculator uses your dew‑point formula exactly (Magnus/Tetens form with a=17.62, b=243.12 in °C). For the surface temperature, the widget uses only the outer film resistance in the drop from ambient to the insulation surface:
Tsurface = Tambient − q × Rout
Here, q is found using the total resistance (Rtotal = Rcond + Rout). That’s why the UI shows both RTotal and the resulting surface temperature.
What the widget computes (in order)
- Dew point (°C)
Tdew = \( b·\ln\!(RH/100) + \frac{a·T_{a}}{b+T_{a}} \) \/ \( a − \big[\ln\!(RH/100) + \frac{a·T_{a}}{b+T_{a}}\big] \)
with
a=17.62,b=243.12,Tain °C. - Resistances per metre Rcond = ln(r2/r1) / (2π k L), Rout = 1/(ho·2π r2 L) Rtotal = Rcond + Rout
- Heat gain q = (Ta − Tf) / Rtotal
- Surface temperature Tsurface = Ta − q·Rout
- Risk check If Tsurface < Tdew + margin → condensation risk
- Auto‑size (when used): increase thickness until the above condition is satisfied, then snap to nearest commercial size.
Symbols & assumptions
r1=Do/2,r2=r1+t,L=1 m.- Outside film coefficient
hoselectable (8/15/25 W·m⁻²·K⁻¹). - Radial conduction only; pipe wall and inner film neglected for a quick, conservative screen.
- All temperatures in °C; RH in %.
Why Rout appears in Tsurface
The drop between ambient air and the outer insulation surface is controlled by the outside convection film. The internal conduction governs the magnitude of q, which then sets how far the surface sits below ambient via q·Rout.
Bottom line
The dew‑point equation you posted is exactly what the widget uses. For the surface temperature, use Rout (not the total R) in Tsurface = Ta − q·Rout; and compute q using Rtotal. The tool then flags risk if the surface is below the dew point (optionally plus your chosen safety margin).
