HVAC Fluids • Beginner Deep Dive

A beginner-friendly HVAC deep dive into how fluids really move

Hey there, fellow engineering explorer! 👷‍♂️👩‍🔧

If you’ve ever stared at a pipe or an air duct and thought, “Okay, the fluid goes in one end and comes out the other—what’s the big deal?”… well, you’re not alone.

BUT… here’s the truth: What’s happening inside that pipe or duct is a complex ballet of molecules being pushed, pulled, slowed down, sped up, and even clinging to surfaces like shy kids at a school dance.

This guide is your friendly map to three essential fluid properties you must understand to work confidently with air, water, refrigerants, or any other fluid used in HVAC systems:

✅ DensityHow much mass is packed into a volume

✅ ViscosityHow sticky the fluid is to motion

✅ Surface TensionHow strongly the surface film pulls together

We’ll break each one down in simple language, show why it matters, and build your intuition with quick, interactive mini‑simulations.

Density (ρ)

Density tells you how much mass is crammed into a given volume (kg/m³). In HVAC, density changes with temperature and pressure—and it directly affects buoyancy, fan power, and mass flow rates.

Higher ρ → heavier per unit volume → more momentum at the same velocity.
Cooling air increases ρ → same volumetric flow delivers more mass (and sensible cooling).

Viscosity (μ)

Viscosity is the fluid’s internal friction. Honey has high μ (resists motion), air has low μ (flows easily). In ducts and pipes, μ helps set the Reynolds number, which tells you whether flow is smooth (laminar) or swirly (turbulent).

Higher μ → more friction → higher pressure drop for the same flow.
μ drops as many fluids warm up; cold oil or cold refrigerant can be much “thicker.”

Surface Tension (σ)

Surface tension is a “skin” on a liquid surface that tries to minimize area. It shapes droplets, affects wicking in coils and filters, and influences how condensate forms and drains.

Higher σ → rounder droplets, stronger capillary rise in tiny tubes.
Coil coatings often tweak wettability to drain water better.

🎛️ Reynolds Number Playground

Pick a fluid and pipe size, set a velocity, and see flow regime, friction factor, and pressure drop (assuming a smooth, straight pipe).

Fluid

Density ρ (kg/m³)

Viscosity μ (Pa·s)

Pipe diameter D (m)

Velocity v (m/s)

Reynolds (ρ·v·D/μ)

—

Friction factor f

—

64/Re (laminar) · Blasius (turbulent)

Δp/L (Pa/m)

—

Darcy–Weisbach

⚖️ Try It: How Density Changes Mass Flow

Keep volumetric flow constant and adjust density. Watch mass flow change instantly.

Volumetric flow Q (m³/s)

Density ρ (kg/m³)

ṁ = — kg/s

🧪 Try It: Capillary Rise in Tiny Tubes

A quick visual for coils, wicks, and porous media. h = 2σ·cosθ / (ρ·g·r)

Surface tension σ (N/m)

Tube radius r (mm)

Contact angle θ (°)

Capillary rise h

—

Higher σ, lower ρ, and smaller r → greater rise

Pocket Glossary

Reynolds number (Re): dimensionless ratio of inertia to viscous forces. Laminar ≲ 2300; turbulent ≳ 4000 (pipe flow).
Darcy–Weisbach: Δp/L = f · (ρ·v² / (2D)) for steady, incompressible pipe flow.
Contact angle (θ): how a liquid wets a surface; small θ = better wetting.

Note: Links open in a new tab and point to other articles on your site (no self‑links).

References & Notes

If you include citations, paste them here. This block highlights sources in a clean, compact style.

Citation style example: ASHRAE Fundamentals, Pipe Flow Chapter; White, F.M., Fluid Mechanics.

HVAC Fluids

Viscosity (μ) — How “thick” or sticky the fluid feels

Let’s talk about viscosity — the simple idea behind why honey creeps while water sprints. Pour them side by side and you’ll immediately see: honey moves sloooow because it has higher viscosity.

Imagine two big plates with fluid in between. You hold the bottom plate still and slide the top one. The fluid resists that motion — thicker fluid means you need more force. That story is captured by Newton’s law of viscosity:

Tau equals mu times dv by dy — Shear stress: **τ = μ (dv/dy)** — force per area is proportional to velocity gradient.

Dynamic (absolute) viscosity, μ — how strongly fluid layers resist sliding. Units: Pa·s (often mPa·s).
Kinematic viscosity, ν — dynamic viscosity adjusted by density: ν = μ / ρ (units: m²/s, often given in cSt).

Nu equals mu over rho — Kinematic viscosity: **ν = μ/ρ**. 1 cSt = 1 mm²/s = 1×10⁻⁶ m²/s.

Air @ 20 °C ≈ 18.1 μPa·s

Water @ 20 °C ≈ 1.01 mPa·s

Honey ≈ 10,000 mPa·s 😲

🎛️ Newton’s Law Playground — Shear Stress & Kinematic Viscosity

Pick a fluid or set custom values. Move the top-plate speed and gap to see how the velocity gradient (dv/dy) drives shear stress τ. We also compute ν and ν in cSt.

Fluid

Density ρ (kg/m³)

Dynamic viscosity μ (Pa·s)

Top-plate speed U (m/s)

Fluid gap y (mm)

Velocity gradient dv/dy (s⁻¹)

—

≈ U / (y in meters)

Shear stress τ (Pa)

—

τ = μ·dv/dy

Kinematic ν

—

m²/s • — cSt

This is a simplified Newtonian‑fluid visual: real HVAC fluids can change μ with temperature, pressure, or shear rate. Always check manufacturer data for design.

🛠️ Why viscosity matters in HVAC

Energy losses: Higher μ → higher frictional losses → more fan/pump power.
Pipe/duct sizing: Thicker fluids flow slower and need larger diameters for the same Q.
Reynolds number: μ directly affects Re, which predicts laminar vs turbulent behavior and head loss correlations.
Fluids you’ll meet: water‑glycol mixes, refrigerants (liquid/vapor), and condensate films — all have very different μ.

Key takeaway: Viscosity is what makes moving fluids cost energy. Know it well.

Citations / Equation Call‑outs

Highlighted equations retained:

Newton’s law of viscosity image: τ = μ dv/dy
Kinematic viscosity image: ν = μ/ρ

Unified Calculator: Fluid Properties ▸ Reynolds ▸ Darcy–Weisbach

Select a fluid & temperature, then size your line and tally friction & minor losses across multiple segments. Everything is scoped to this widget and mobile‑friendly.

1) Fluid Properties (Auto‑fill by Fluid & Temperature)

Fluid

Temperature (°C)

Fluid Density, ρ (kg/m³)

Kinematic Viscosity, ν (m²/s)

Air via ideal‑gas + Sutherland‑like fit; water via table interpolation. Approximations for quick sizing — verify against manufacturer data for final design.

2) Reynolds Number & Friction Factor

Pick a diameter, velocity, and pipe material (roughness). We’ll compute Re, indicate flow regime, and estimate the Darcy friction factor (laminar: 64/Re; turbulent: Haaland).

Velocity V (m/s)

Pipe Diameter D (m)

Pipe Material (roughness ε)

Reynolds

—

Friction factor f

—

Laminar 64/Re; Turbulent Haaland

Relative roughness ε/D

—

Material effect in turbulence

3) Multi‑Segment Darcy–Weisbach

Flow Input Type

Flow Rate Q (m³/s)

Pipe Segments

Add segments in series. For each, set Length L, Diameter D, and Material (ε). Optionally, expand Fittings / Minor Losses to include elbows, tees, valves, etc.

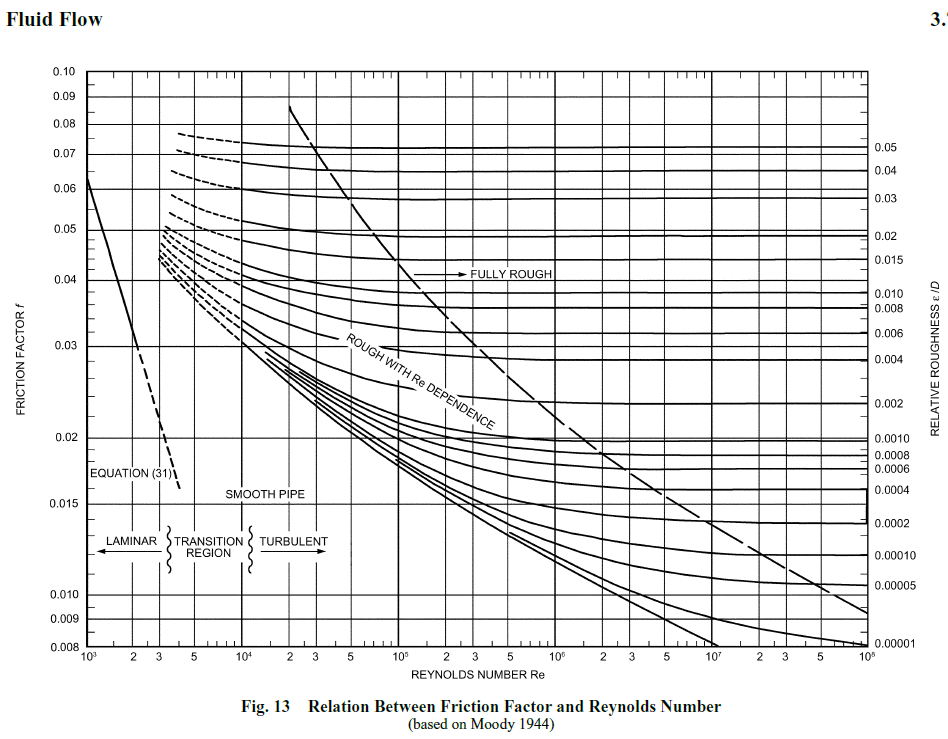

Moody Chart Reference

Open full chart in a new tab
