🔢 How to Prepare Working Plans and Hydraulic Calculations for Sprinkler Systems (NFPA 13 Guide)
Fire sprinkler systems are like silent heroes 🚒, and behind every well-installed system is a rock-solid working plan and hydraulic calculation.
Let’s dive into how you can prepare these documents step-by-step — easy enough for novice engineers, yet detailed enough to meet NFPA 13 (2022 Edition)! 💡
Checklist completion
0%
Items complete
0/0
Filters active
All
📐 Working Plans – What to Show
Guidance only. Always verify with the latest NFPA 13 and your AHJ submittal checklist.
Site & floor plans with scale and north arrow
Include reference grids, floor levels, occupancies, and hazard classifications per area.
Sprinkler layout, spacing & orientation
Show coverage limits, special coverage heads (QR/ESFR/CMDA), and any spacing reductions/adjustments.
Ceilings, heights, slopes & obstructions
Note beams, ducts, racks, skylights, clouds, and other features affecting placement.
Pipe routing, sizes & materials
Show mains, branch lines, drops, fittings, valves, drains, inspector’s test & auxiliary drains.
Hangers & seismic bracing
Indicate hanger types/spacing and lateral/longitudinal bracing (if required by code/jurisdiction).
Water supply data
Document test date/time, location, static/residual/flow, test method, backflow/pump losses and settings.
Valves & devices
Control valves, alarm/check valves, flow/pressure switches, tamper switches, PRVs, and monitoring points.
Hydraulic reference points
Mark remote area boundary, reference nodes, elevation changes, and high-point vents on the plans.
💧 Hydraulic Calculations – Inputs & Assumptions
Design method & remote area
Density/Area, Room Design, CMSA/ESFR as applicable; remote area size & adjustments (slope, QR, sprinklers on multiple levels, dry system increase, etc.).
K‑factors, number of sprinklers & hose allowance
State K‑factors per head type, sprinklers in the remote area, inside/outside hose allowance, and any design margin.
Friction loss model & C‑factors
Use consistent C‑factors by material; include equivalent lengths for fittings, backflow, meters, PRVs and flexible drops.
Elevation head, pump curve & device losses
Account for static elevation, suction/discharge, backflow preventer loss, and meter losses per manufacturer data.
System type & temperature considerations
Wet/dry/preaction, potential freezing, antifreeze solutions (if permitted), and associated calculation adjustments.
🗂️ Submittal Package – What to Include
Working drawings
Plans, details, notes, symbols legend, and specific AHJ-required sheets.
Hydraulic calculations
Summary sheet, node‑by‑node sheets, water supply graph, and input assumptions.
Manufacturer data
Sprinklers, valves, fittings, backflow preventers, meters, pumps, hangers, seismic hardware with listings/approvals.
Seismic/hanger calcs (if required)
Include bracing details, loading, and spacing tables to suit jurisdictional requirements.
🧠 Common Pitfalls & Pro Tips
Forgetting flexible drop losses
Include bend count and hose length losses from manufacturer curves; they can be significant.
Wrong remote area
Confirm area adjustments (QR, slope, dry increase, sprinklers below/above) and obstruction impacts.
Outdated water test data
Coordinate with water utility; changes in season or system configuration can alter the curve.
Ignoring elevation differences
Account for highest heads and pump/deck elevations; elevation head can make or break the design.
This checklist is a practical aide—not a substitute for the standard. Coordinate with the AHJ.
Panels open
0/0
Search matches
0
Theme
Light (locked)
📄 What Are Working Plans?
Working plans are detailed drawings that show the entire sprinkler system’s design.
🌐 Definition:
A working plan is a scaled drawing submitted for approval to the Authority Having Jurisdiction (AHJ) before installation begins.
🔑 Key Purposes:
- 🔄 Coordinate all sprinkler piping and equipment
- 🔢 Prove that design meets hydraulic demands
- 🚧 Ensure compliance with NFPA 13 standards
🔗 What’s Included in Working Plans? (As per NFPA 13 Chapter 28.1)
- ✅ Name and address of building and installing contractor
- ✅ Point of compass (North arrow) and scale
- ✅ Detailed layout of partitions, barriers, firewalls
- ✅ Identification of all rooms and spaces (even hidden ones!)
- ✅ Sprinkler locations and types ✨ (Orientation, K-factor, SIN Number)
- ✅ Pipe sizes, fittings, valves, risers
- ✅ Water supply info: static pressure, flow rates, residual pressure
- ✅ Design criteria: hazard classifications, commodity storage classes
- ✅ Location of fire department connections and test/drain points
- ✅ Hydraulic node labeling (to connect with calculations)
🧰 What Are Hydraulic Calculations?
Hydraulic calculations show that water will flow at the right pressure and quantity to every sprinkler head when needed! 🚒💧
🌐 Definition:
Hydraulic calculations are mathematical proofs that your sprinkler system can deliver required water supply under fire conditions.
🎯 Two Main Purposes:
- ✅ To ensure enough water 🚰
- ✅ To ensure right pressure at sprinklers
Checklist completion
0%
Items complete
0/0
Search matches
0
🧮 Basic Hydraulic Calculation Steps
- 🏙️ Layout the Design Area
Select the most demanding (worst-case) area to calculate.
Follow rules from Chapter 19 or Chapter 20 based on occupancy/storage type. - ✔️ Choose Calculation Method
Pipe Schedule Method (for Light & Ordinary Hazard) (Simple lookup)
Hydraulic Calculation Method (Density/Area Curves) (Advanced) - 👁️ Identify Most Remote Sprinkler
Usually the farthest away and highest point sprinkler. - 🧑🔬 Apply Hydraulic Formulas
NFPA 13 allows two major formulas:
A. Hazen‑Williams Formula (for regular piping):
Where:- p = Frictional resistance (psi/ft)
- Q = Flow (gpm)
- C = Friction loss coefficient (pipe material quality)
- d = Internal diameter of pipe (inches)
B. Darcy‑Weisbach Formula (for antifreeze systems > 40 gal)
Where:
- ΔP = Friction loss (psi)
- f = Friction factor (from Moody Diagram)
- l = Pipe length (ft)
- ρ = Density of fluid (lb/ft³)
- Q = Flow (gpm)
- d = Inside diameter (inches)
Steps 5–6
- 📈 Calculate Pressure and Flow at Each Node
Dive into the network! At every junction point (node), calculate the pressure and flow:- ✅ Include all fittings, valves — use equivalent lengths from Table 28.2.3.1.1.
- ✅ Ensure pressures balance within ±0.5 psi at junction points (tight tolerances matter!).
- 🛢️ Add Hose Stream Allowance
After calculating your system flow, boost it by adding the required hose stream allowance:- 💧 Light Hazard: +100 gpm
- 💧 Ordinary Hazard: +250 gpm
- 💧 Extra Hazard: +500 gpm
✅ Progress Checklist
Layout the Design Area
Select worst‑case remote area (per Ch. 19/20).
Choose Calculation Method
Pipe Schedule (LH/OH) or Density/Area curves.
Identify Most Remote Sprinkler
Typically farthest and highest head.
Apply Formulas
Hazen‑Williams or Darcy‑Weisbach (as applicable).
Calculate Node Pressures/Flows
Include fittings (equiv. lengths); balance within ±0.5 psi.
Add Hose Stream Allowance
LH +100, OH +250, EH +500 gpm.
Terms understood
0/0
Search matches
0
Last result
—
🧾 Important Jargons (Explained)
📍 Design Area
The section of the building where sprinkler activation is assumed to occur during a fire scenario.
📍 Hydraulic Remote Area
The part of the sprinkler system that is most difficult to supply — typically farthest from the water source.
📍 Friction Loss
Energy (or pressure) lost as water flows through pipes, fittings, and valves due to resistance.
📍 Node
A junction or branching point within the piping system where flow direction or size changes.
📍 K‑factor
A constant unique to each sprinkler model that relates flow rate to discharge pressure (key for hydraulic calculations).

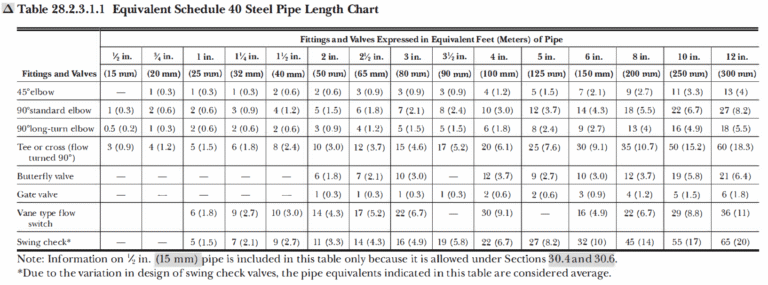

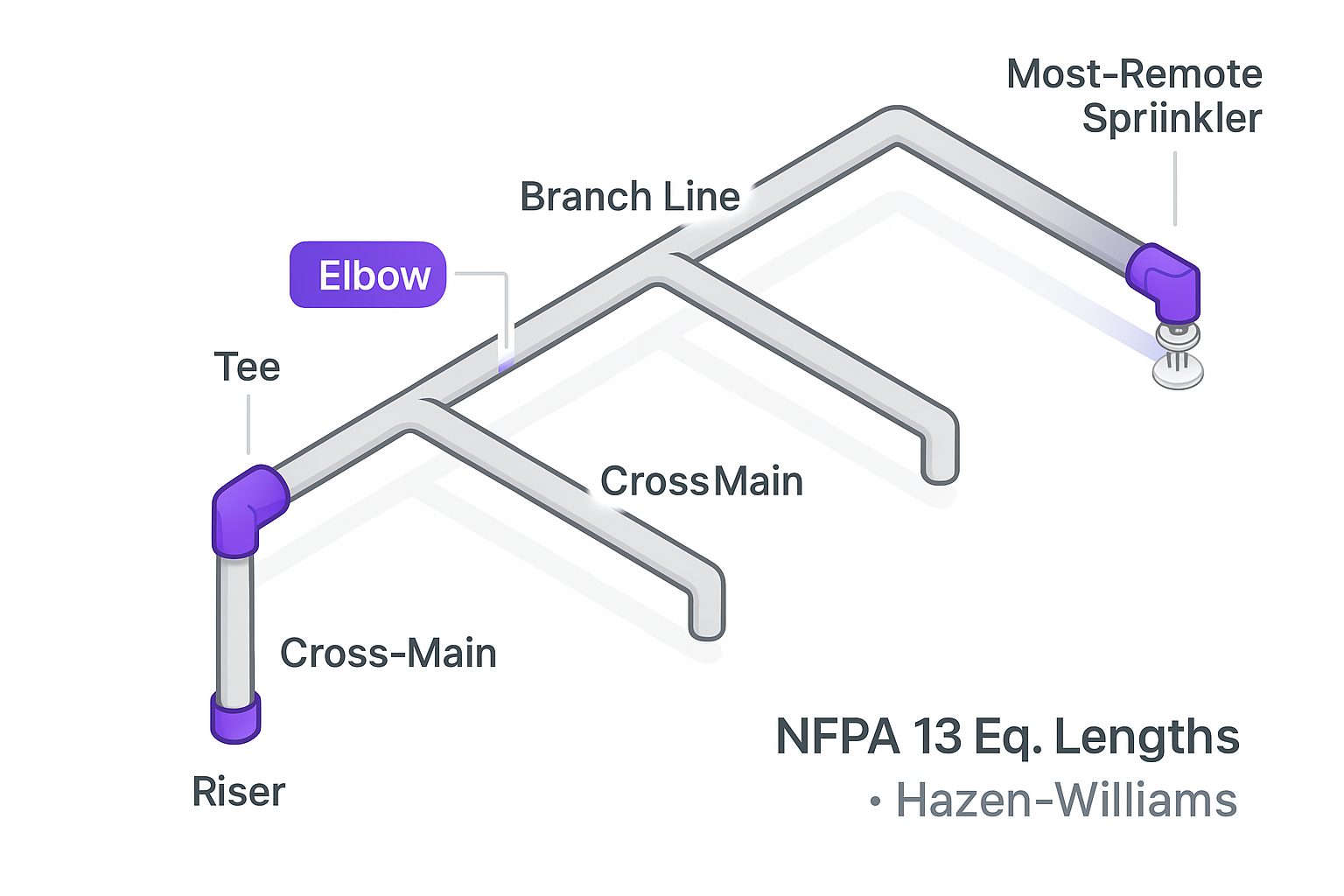

🚰 Equivalent Pipe‑Length Calculator NFPA 13 Table 28.2.3.1.1 (Sch 40 steel)
Values shown are equivalent straight‑pipe lengths in feet for Schedule 40 steel per NFPA 13 (verify with the latest edition and AHJ requirements).
📋 Note:
In hydraulic calculations, every fitting and valve introduces extra frictional loss — you can’t ignore them!
Use the reference values from Table 28.2.3.1.1 — Equivalent Schedule 40 Steel Pipe Length Chart to add “equivalent feet (or meters)” for each fitting into your total pipe length before calculating pressure losses.
🔎 Example:
- ✅ A 2‑inch 90° standard elbow = 5 feet (1.5 meters) equivalent pipe length.
- ✅ A 4‑inch tee (with flow turned 90°) = 20 feet (6.1 meters) equivalent pipe length.
🛠️ Always add these equivalent lengths to your total pipe run before applying the Hazen‑Williams formula!
