Sprinkler Types (NFPA 13): Pendent, Upright, Sidewall & More
Introduction: Why Sprinkler Types Matter
In the world of fire protection 🚒, not all sprinklers are created equal. NFPA 13 classifies sprinklers by function, orientation, response time, temperature rating and coverage capability. The right pick ensures your system reacts fast and throws water exactly where it’s needed.
This guide breaks it down in plain English with emojis, analogies and crisp visuals. 💧
Automatic Sprinklers (📍Basic Category)
- Definition: A sprinkler that activates automatically when exposed to heat.
- Purpose: Spray water in a predefined pattern when a fire starts.
- Thermal activation: Triggered by heat‑sensitive elements like glass bulbs or fusible links.
🧠 Remember: “Automatic” just means no person has to trigger it — not that it turns on randomly!
Tap to spray live SVG demo
Demo effect: illustrative only. Real spray patterns vary by K‑factor, deflector and spacing.
Orientation‑Based Types (Installation Position)

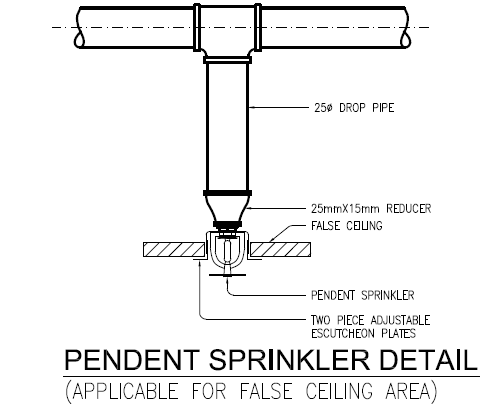

- 🔻 Hangs from the ceiling; sprays water downward over the deflector.
- 👍 Clean look with escutcheons through false ceilings.
- 📐 Often the go‑to in offices and finished spaces.
Tip: If you have a false ceiling, pendent is usually the simplest route. Validate spacing, obstructions and deflector distance from ceiling per NFPA 13.

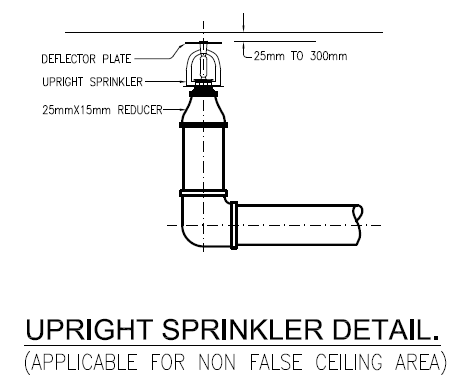

- 🔼 Sits above the pipe; water hits the deflector and spreads downward.
- 🧰 Ideal for non‑false‑ceiling areas and exposed structure.
- 🧱 Less chance of dust/debris collecting in a cup like with pendents.
Mind the deflector‑to‑ceiling distance (commonly 25–300 mm depending on listing and NFPA 13 rules).
- ➡️ Mounts on a wall; throws a crescent‑shaped spray out and across the room.
- 🏨 Handy along corridors, hotel rooms and locations with tight ceiling services.
- 📏 Follow listing for distance below ceiling and end‑wall clearances.
Often used where piping in the ceiling is difficult or aesthetics demand minimal ceiling penetrations.

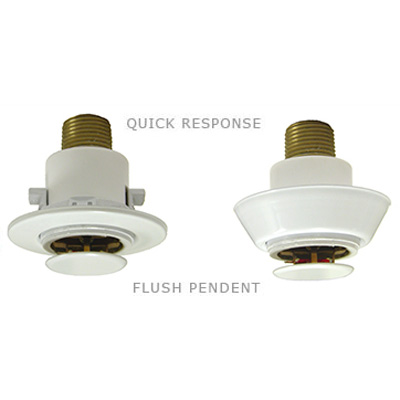

- 🛠️ Aesthetic trims (recessed, flush, concealed) hide the cup/escutcheon.
- 🎯 Performance is per the underlying orientation (pendent, upright or sidewall).
- ⚠️ Ensure listed trim and proper recess depth; avoid obstructions by ceiling fixtures.
Response & Coverage Families
Quick Response (QR) vs Standard Response (SR)
QR sprinklers have smaller bulbs and respond rapidly to protect life safety (typical in light/ordinary hazards). SR is tuned more toward control of fire growth and is common in storage/industrial areas. Always match to the hazard and NFPA 13 tables.
CMDA / CMSA / ESFR (Storage)
CMDA = Control Mode Density/Area; CMSA = Control Mode Specific Application; ESFR = Early Suppression Fast Response. These are specialized listings for storage occupancies and need strict spacing, K‑factor and obstruction limits.
Temperature Ratings & Color Codes
Glass bulbs are color‑coded by rating (e.g., Ordinary, Intermediate, etc.). Pick based on ambient ceiling temperature and local code guidance.
Reminder: Always use listed sprinklers as per their data sheet, maintain minimum distances from ceilings/structure/obstructions, and verify spacing with NFPA 13.
Mini Decision Helper (orientation)
This is a simple orientation hint only. Final selection must follow the listing and NFPA 13 layout rules.
Go Deeper (Guides & Calculators)
60‑Second Check: Pick the Right Orientation
Q1. Corridor with no false ceiling and services on one side wall. Best first pass?
Q2. Open car‑park with exposed beams and no ceiling. Likely choice?
Q3. Finished office with suspended (false) ceiling. Typical selection?
These are orientation hints only. Confirm with NFPA 13 spacing/obstruction rules and product data sheets.
Need a different palette? Set style="--accent:#8b5cf6" on the wrapper div.
Sprinkler Performance Types (NFPA 13)
Let’s break down the technical names you see in specs 👇
* Chapter numbers vary by edition; confirm with the edition you’re using.
✅ a. Standard Spray Sprinklers
- 📐 Covers standard areas (as defined in NFPA 13 Ch. 10 & 11*)
- 🔥 Used for general fire protection in residential, commercial, and industrial spaces.
🚀 b. Quick Response (QR) Sprinklers
- RTI ≤ 50 m½·s½ (fast thermal response).
- 🚶♂️ Primarily used in people‑occupied spaces like offices, schools, and hospitals.
- Fast thermal response = quicker water spray = quicker fire knockdown ⏱️💦
🧨 c. Early Suppression Fast Response (ESFR)
- Used in warehouses and storage areas with high‑piled goods.
- 🔥 Suppresses the fire, not just controls it.
- 🚫 Often no in‑rack sprinklers required — reduces complexity (when design criteria allow).
📦 d. Control Mode Density/Area (CMDA)
- Design based on water density per area (e.g., gpm/ft²).
- 🛒 Ideal for retail, commercial, and industrial storage.
🔍 e. Control Mode Specific Application (CMSA)
- Targets specific high‑challenge hazards (e.g., plastic storage).
- Uses large water droplets for deeper fire penetration.
- Requires special design criteria found in NFPA 13 Ch. 14*.
Special Purpose Sprinklers
🏠 Residential Sprinklers
Homes, apartments — focuses on life safety.
🧱 Institutional Sprinklers
Jails, hospitals — anti‑vandal, tamper‑resistant.
🌡️ Dry Sprinklers
Cold areas — keeps water out of pipes to avoid freezing.
💡 Electrically Operated
Smart systems — triggered via fire alarm panels.
🧪 Pilot Line Detectors
Activates deluge or preaction systems.
🎨 Ornamental Sprinklers
Aesthetic finish — chrome, black, brass etc.
🧾 Sprinkler Type Summary Table
| Category | Sprinkler Type | Use Case / Specialty |
|---|---|---|
| Orientation | Pendent, Upright, Sidewall | Where and how it’s mounted |
| Response | Quick Response, ESFR | Speed of action and intensity |
| Application | CMSA, CMDA, Residential | Depends on occupancy type and fire risk |
| Aesthetic/Special | Institutional, Ornamental, Concealed | Looks or specific tamper‑proof/safety use cases |
Use the filter/search to skim. Always confirm against the sprinkler’s data sheet and the edition of NFPA 13 in force.
Keep Learning
30‑Second Orientation Hint
Tap a scenario for a quick hint (not a design!).
Change the accent with --accent (e.g., #1D4ED8 for indigo). This block won’t affect the rest of your theme.
🔣 Formula: RTI – Response Time Index
RTI is a measure of how fast a sprinkler responds to heat.
Where:
- ρ = Density of bulb material (kg/m³)
- c = Specific heat capacity (J/kg·K)
- D = Diameter of the thermal element (m)
💡 Lower RTI = faster response. QR and ESFR have RTI ≤ 50. Standard ones are around 80 or more.
📚 Fun Fact
Sprinklers don’t all go off at once like in the movies! 🎬 Only the ones directly exposed to the heat activate — unless you’re using open sprinklers in deluge systems.
✅ Conclusion: Choosing the Right Sprinkler
Think of choosing sprinklers like picking tools in a toolbox 🔧. Each is designed for a unique purpose — whether it’s speed, coverage, durability, or special environments.
Understanding sprinkler types helps:
- Design safer buildings
- Comply with NFPA 13 requirements
- Optimize cost and performance 💸⚙️
